Copper Earth Rods
Show all variants
Description

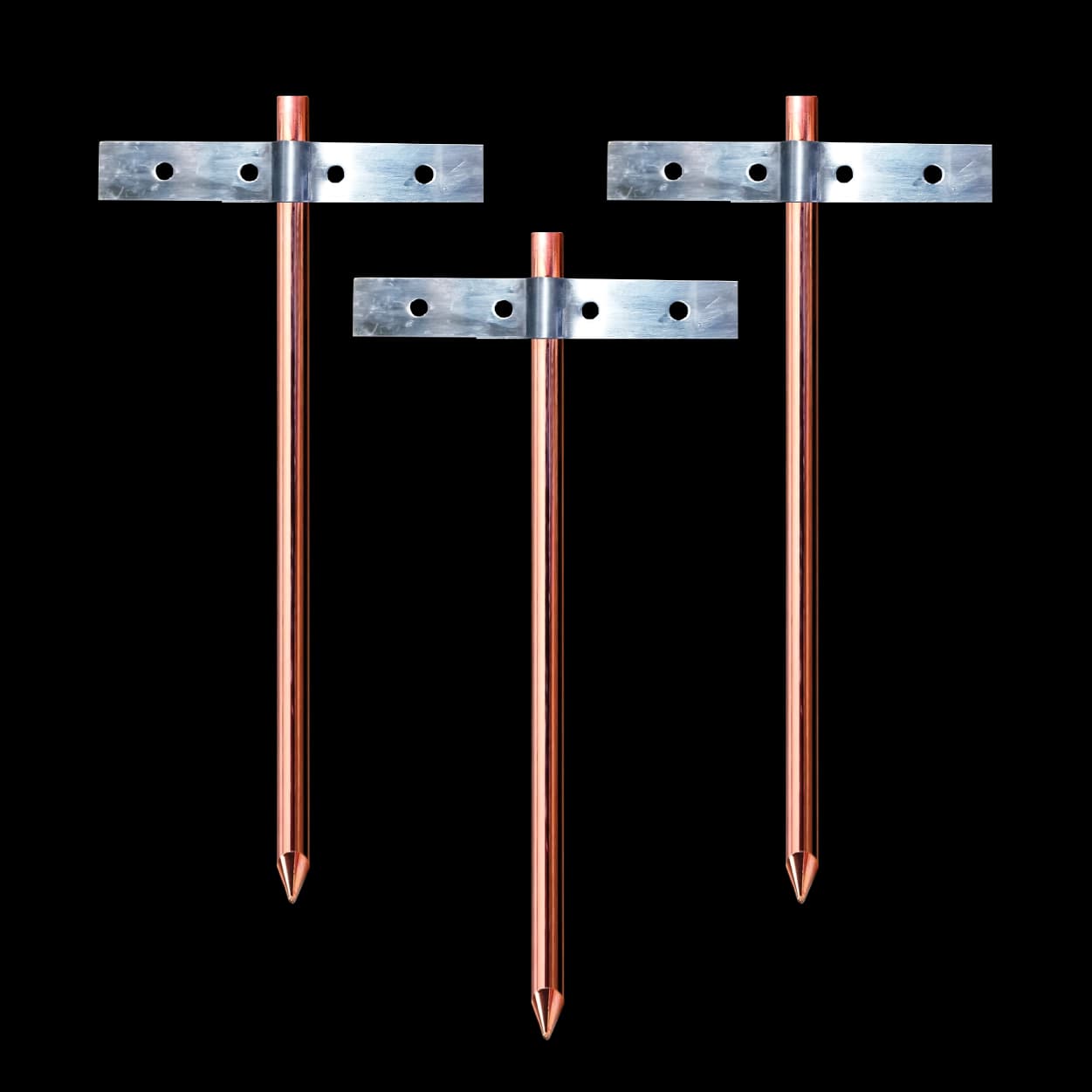

TRUESAFE™ Chemical Earthing manufactured by SG Power Products Pvt. Ltd. is a high-quality 99% Pure Copper Rod designed for efficient electrical grounding applications. This model features a 14 mm diameter rod with 1 metre length, providing reliable current dissipation and long service life in earthing systems.
The rod is manufactured using E250 grade steel core with a copper bonded layer for superior conductivity and corrosion resistance. It complies with IS3043 standards and is supplied with T-Type Terminal clamp for secure electrical connections.
Datasheet (PDF)Technical Data
| Manufacturer | SG Power Products Pvt. Ltd. |
| Product | TRUESAFE™ Chemical Earthing |
| Model | PCR14SG100 |
| Make | SGPL |
| Material Description | 99% Pure Copper Rod |
| Dia of Rod | 14 mm |
Safe electrical installation starts below the ground. Every building, substation, telecom tower and industrial plant needs a low-resistance path to send fault currents and lightning surges into the earth. Copper earth rods form that path. SG Power Products Pvt. Ltd. is one of the trusted Copper Earth Rods Manufacturers and Suppliers in India. We supply copper bonded earth rods built for high conductivity, strong corrosion resistance and a long service life in every soil condition.
What Are Copper Earth Rods?
A copper earth rod (also called a copper earthing rod or copper grounding rod) is a metal electrode driven vertically into the ground. It connects an electrical system to the general mass of the earth. When a fault occurs, the rod carries the unwanted current safely into the soil. This protects people from electric shock, protects equipment from damage and helps protective devices such as MCBs and RCCBs trip on time.
There are three common types of copper earth rods in the market:
Q. Solid copper earth rods
Ans. made fully of copper. They offer the best corrosion resistance but cost more and are softer to drive.
Q. Copper bonded earth rods
Ans. a high-strength steel core with a layer of pure copper molecularly bonded to it. They combine the strength of steel with the conductivity of copper.
Q. Copper coated or copper plated rods
Ans. a thin plated layer that can peel or wear during installation. They are a lower-cost option with a shorter life.
SG Power manufactures copper earth rods, which give the best balance of performance, strength and value for most projects.
Why Copper Bonded Earth Rods Are the Preferred Choice
As experienced Copper Earth Rods Manufacturers and Suppliers, we recommend copper bonded rods for most installations. Here is why:
High conductivity: The outer layer of 99% pure copper gives excellent electrical conductivity and a low earth resistance.
High tensile strength: The E250 grade steel core lets the rod be driven deep into hard or rocky soil without bending.
Corrosion resistance: Copper resists rust and chemical attack, even in moist, salty or acidic soil.
No peeling: Because the copper is bonded to the steel, it does not flake off when the rod is hammered or bent.
Lower cost: A bonded rod uses less copper than a solid rod while giving a similar life in most soils.
Extendable: Rods can be coupled together to reach deeper, low-resistance soil layers.
Key Features
High-purity copper layer for efficient fault current dissipation
Strong E250 steel core for easy driving and high tensile strength
Excellent corrosion resistance for a long service life
Supplied with a secure T-type terminal clamp
Precise, uniform copper bonding with a smooth finish
Made to IS 3043 guidelines for safe and reliable earthing
Low maintenance once installed with the right backfill compound
Applications of Copper Earth Rods
Our copper earthing rods are used wherever a safe and stable earth connection is needed:
Industrial plants and factories – earthing of motors, panels, transformers and heavy machinery
Commercial buildings – malls, offices, hospitals and hotels
Power distribution systems – substations, transformers and DISCOM networks
Telecom towers – protection of sensitive communication equipment
Data centers – low-resistance earthing for servers and IT infrastructure
Solar and renewable energy plants – earthing of panels, inverters and structures
Railways and metro projects – signaling and traction earthing
Lightning protection systems – safe discharge of lightning strikes
Residential buildings – homes, apartments and housing societies
Benefits of Choosing the Right Copper Earth Rod
Enhanced safety for people and property
Faster tripping of protective devices during faults
Protection against lightning and surges reducing equipment damage
Stable earth resistance over many years
Long-term cost savings from fewer replacements and less maintenance
How to Select the Right Copper Earth Rod
Many buyers choose a rod only by price. A better choice comes from looking at a few key factors:
Soil type: Rocky or hard soil needs a strong steel core. Sandy or dry soil may need longer rods or more rods in parallel.
Soil corrosiveness: Coastal, salty or chemical-rich soil needs a thicker copper layer.
Required earth resistance: Sensitive equipment such as data centres and telecom sites usually needs a lower resistance value.
Fault current level: Higher fault currents need a larger diameter rod and conductor.
Project standards: Check whether your project specifies IS 3043 or another standard.
Our technical team helps you pick the right diameter, length and clamp for your site.
Installation Process
Select a suitable location with moist soil, away from building foundations.
Drive the rod into the ground vertically using a driving head to protect the top.
Connect the grounding conductor using the T-type clamp or a suitable connector.
Use a backfill compound around the rod to keep moisture and lower resistance.
Install an earth pit cover for safe access and inspection.
Test the earth resistance with an earth tester and record the value.
SG Power also supplies backfill compound, earth pit covers, exothermic welding powder and lightning arresters, so you get a complete earthing solution from one source.
Why Choose SG Power – Trusted Copper Earth Rods Manufacturers and Suppliers
When you compare Copper Earth Rods Manufacturers and Suppliers in India, quality and support make the difference. Here is what SG Power offers:
Experienced manufacturer: Years of experience in earthing, lightning protection and power products.
Quality materials: E250 steel core with a pure copper layer for dependable performance.
Standards compliance: Products made in line with IS 3043.
Complete earthing range: Earth rods, chemical earthing electrodes, GI electrodes, backfill compound and pit covers.
Competitive pricing: Direct-from-manufacturer rates for bulk and project orders.
Pan-India delivery: Timely supply to project sites across India.
Expert technical support: Guidance on sizing, installation and testing.
Whether you need a few rods for a home or thousands for an infrastructure project, SG Power is a reliable partner among Copper Earth Rods Manufacturers and Suppliers. See also our chemical earthing electrodes, GI earth electrodes and UL listed copper bonded rods.
