A reliable earthing system is only as good as the protection around it. Earth pit covers shield the earthing electrode, conductor joints and backfill compound from foot traffic, vehicle loads, rainwater, dust, UV exposure and tampering. Without a proper earthing pit cover, connections corrode faster, inspection becomes difficult and the entire electrical safety system is put at risk.
SG Power Products Pvt. Ltd. is a leading earth pit cover manufacturer and supplier in India, offering a complete range of TRUESAFE™ earth pit covers in three categories: Heavy Duty Earth Pit Covers, Light Duty Earth Pit Covers and Cast Iron Earth Pit Covers. Each category is engineered for a specific load, site condition and application, from residential buildings to substations, railways, metro projects, DISCOMs and renewable energy plants.
An earth pit cover, also called an earthing pit cover, earth pit chamber or earthing chamber cover, is a protective enclosure placed over the top of an earth pit. It houses the top end of the earthing electrode (such as a GI or copper bonded electrode) and the point where the earthing strip or conductor connects to it.
A good earth pit cover performs four essential jobs:
Protection – prevents physical damage to the electrode and clamp from people, vehicles and machinery.
Accessibility – allows engineers to open the lid for periodic earth resistance testing, watering and maintenance.
Identification – clearly marks the location of the earth pit on site.
Security – lid locking systems prevent unauthorized access and theft of copper or GI connections.
According to good earthing practice under IS 3043 (Code of Practice for Earthing), earth electrodes should remain accessible for inspection and testing, which is exactly what a properly installed earth pit cover makes possible.
Heavy duty earth pit covers are designed for industrial plants, substations, parking areas, roadsides and any location where the cover may face heavy loads or rough handling. SG Power manufactures heavy duty pit covers from high-quality HDPP (High-Density Polypropylene), a material that is strong, non-corrosive and does not rust or rot like metal or concrete.
Available sizes: 10 inch, 12 inch, 13 inch, 18 inch and 18 inch (Rectangular / Jumbo).
Key specifications (Model EPC-05, 18 inch):
| Parameter | Specification |
|---|---|
| Product | TRUESAFE™ Earth Pit Cover |
| Material | HDPP (High-Density Polypropylene) |
| Shape | Square |
| Top / Bottom Size | 500 mm × 500 mm |
| Height | 330 mm |
| Lid Lock System | GI Hex Bolt |
| Bottom Colour | Black |
| Lid Colour | Black / Grey |
| Conductor Openings | 2 or 4 openings |
| UV Resistant | Yes |
| Eco Friendly | Yes |
| Applicable Standard | IS 3043 |
| Testing | Load Test Certificate from NABL Lab |
The GI hex bolt lid lock makes the heavy duty earth pit cover tamper-resistant, while the large footprint provides a stable, secure fit over large earthing pits. The NABL lab load test certificate gives EPC contractors and project consultants documented proof of load-bearing performance.
Best for: industrial earthing, power plants, substations, solar parks, railway and metro projects, telecom towers, commercial complexes and outdoor installations exposed to vehicle movement.
View Heavy Duty Earth Pit CoversLight duty earth pit covers are a lightweight, economical solution for homes, offices, shops, small commercial buildings and locations with only pedestrian traffic. They are also made from UV-resistant HDPP, so they stay strong and colour-stable under direct sunlight and rain.
Available sizes: 6 inch, 8–9 inch and 10 inch.
Key specifications (Model EPC-T9, 8–9 inch):
| Parameter | Specification |
|---|---|
| Product | TRUESAFE™ Earth Pit Cover |
| Material | HDPP (High-Density Polypropylene) |
| Shape | Rounded Square |
| Top Diameter | 190 mm |
| Bottom Diameter | 275 mm |
| Height | 245 mm |
| Lid Lock System | Rotation Locking |
| Bottom Colour | Black |
| Lid Colour | Green |
| Conductor Openings | 2 × 2 openings |
| UV Resistant | Yes |
| Eco Friendly | Yes |
| Applicable Standard | IS 3043 |
The rotation locking lid allows quick, tool-free access for routine earth testing while keeping the lid secure. The bright green lid makes the earth pit easy to locate, which is helpful for electricians and maintenance teams.
Best for: residential earthing, apartments, schools, hospitals, retail outlets, small offices, gardens, lightning arrester earthing and general-purpose earthing applications.

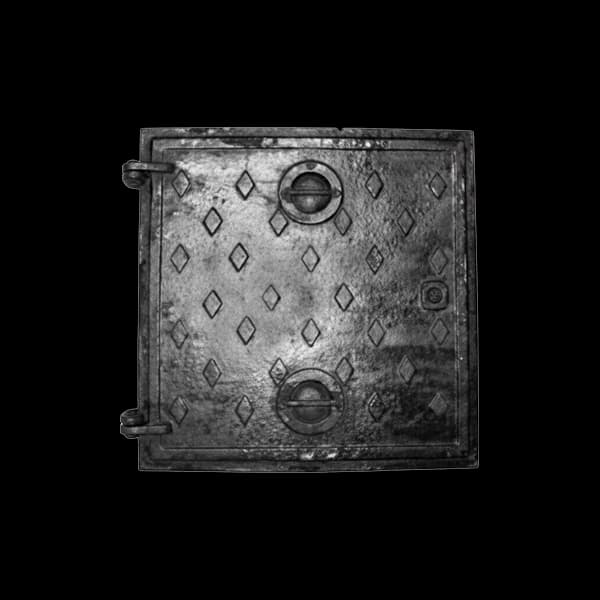

View Light Duty Earth Pit CoversCast iron earth pit covers offer the classic strength of metal combined with a hinged, lockable design. They are preferred by customers who specify metallic earth pit chambers, or for sites where a flush, rugged metal finish is required.
Available sizes: 300 × 300 mm and 450 × 450 mm.
Key specifications (Model SG450GAP, 300 × 300 mm):
| Parameter | Specification |
|---|---|
| Product | GA Earth Pit Chamber |
| Cover Material | Cast Iron |
| Frame Material | Metallic |
| Size | 300 mm × 300 mm |
| Weight | Approx. 2–3 kg |
| Finish | Black Painted (corrosion protective) |
| Lid Type | Hinged |
| Pad Locking Arrangement | Yes |
The hinged lid stays attached to the frame, so it cannot be misplaced, and the pad locking arrangement adds a strong layer of security. The black painted finish protects the cast iron surface against corrosion.
Best for: residential, commercial and industrial earthing, government building projects, campuses and sites where a metallic earth pit cover is specified.
View Cast Iron Earth Pit Covers| Feature | Heavy Duty | Light Duty | Cast Iron |
|---|---|---|---|
| Material | HDPP | HDPP | Cast Iron with Metallic Frame |
| Sizes | 10", 12", 13", 18", 18" Rectangular | 6", 8–9", 10" | 300×300 mm, 450×450 mm |
| Lid Lock | GI Hex Bolt | Rotation Lock | Hinged with Pad Lock |
| Corrosion | Will not rust | Will not rust | Black painted protection |
| Typical Use | Industrial, infrastructure, vehicle areas | Residential, light commercial | Residential to industrial, metal spec |
High-strength HDPP construction in polymer models for long service life
UV resistant and weatherproof, suitable for Indian summers and monsoons
Corrosion-free polymer body that will not rust, crack easily or rot
Secure lid locking systems – GI hex bolt, rotation lock or hinged pad lock
Multiple conductor openings for flexible routing of earthing strips and wires
Eco-friendly material
Compliant with IS 3043 earthing practice
NABL lab load test certificate available for heavy duty models
Wide size range from 6 inch to 18 inch and 300 to 450 mm
Bulk supply for contractors, EPC companies and government tenders
SG Power earth pit covers are used wherever an earthing system is installed, including:
Residential houses, villas and apartment complexes
Commercial buildings, malls, hospitals and schools
Industrial plants, factories and warehouses
Electrical substations and transformer yards
Solar power plants and wind energy projects
Railway and metro electrification
Telecom towers and data centres
Lightning protection system earthing
DISCOM and power distribution networks
Oil, gas and petrochemical facilities
Check the load: Choose a heavy duty earth pit cover where vehicles, forklifts or heavy equipment may pass. A light duty earth pit cover is enough for pedestrian or garden areas.
Match the pit size: Select a cover size that fits the dug pit and leaves room for the electrode head and conductor clamp.
Count the conductors: Pick a model with enough openings (2, 4 or 2×2) for all earthing strips entering the pit.
Decide on security: For public or remote sites, use bolt-locked or pad-locked models to prevent theft and tampering.
Consider the material: HDPP polymer covers are lightweight and rust-free; cast iron earth pit covers suit projects that specify metallic chambers.
Ask for documentation: For large projects, request datasheets and the NABL load test certificate.
In dry, sandy or rocky soil, pair the pit with our earth enhancing compound to keep resistance low and stable through the seasons.
SG Power Products Pvt. Ltd. is a trusted name in earthing and lightning protection solutions in India. Along with earth pit covers, we manufacture earthing electrodes, GI electrodes, backfill compounds, lightning arresters, welding powder, servo voltage stabilizers and rectifier plants. This makes SG Power a single-source supplier for complete earthing systems.
In-house manufacturing with consistent quality control
TRUESAFE™ brand products built for Indian site conditions
Complete range of heavy duty, light duty and cast iron pit covers
Pan-India supply for railways, metro, DISCOMs, renewable energy and engineering projects
Technical support from earthing experts to help you select the right product
Competitive pricing for bulk and project orders
