Class B for 1-Phase Surge Protection Device Manufacturer in India
Combined lightning current and surge arrester (T1 + T2) for the service entrance
Description

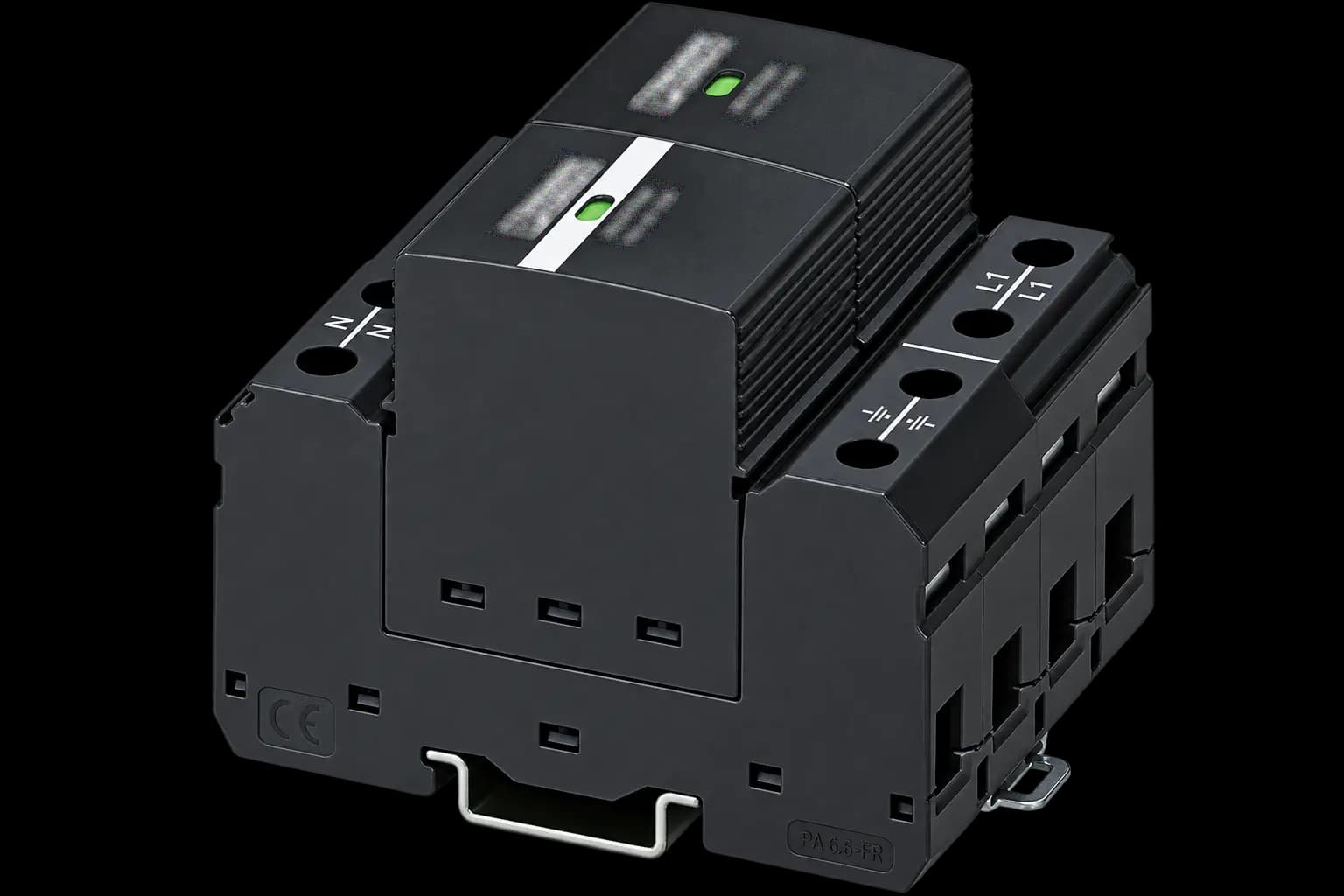

The Class B for 1-Phase Surge Protection Device manufactured by SG Power Products Pvt. Ltd. is a DIN rail module, two-section, divisible, classified I + II / T1 + T2 to IEC and type T1 + T2 to EN. It is designed for TN power supply systems and protects installations from lightning currents and transient overvoltages caused by switching operations and indirect lightning effects.
The module is rated for a nominal voltage of 24V AC/DC at a nominal frequency of 50/60 Hz. It measures 71.2 mm × 95 mm × 71.2 mm (incl. DIN rail 7.5 mm) and occupies a horizontal pitch of 4 Div. on the rail. This model carries no surge protection fault message, so module condition is verified during scheduled inspection.
The housing uses PA 6.6 / PBT insulating material in Jet black (RAL 9005) with a UL 94 V-0 flammability rating and IP20 (only when all terminal points are used) degree of protection. It operates and is stored at -40 °C ... 80 °C and 5 % ... 95 % humidity, withstands 25g shock and 5g vibration, and is tested to IEC 61643-11 and EN 61643-11.
Technical Data — Class B for 1-Phase
| Manufacturer | SG Power Products Pvt. Ltd. |
| Model | Class B for 1-Phase |
| IEC test classification | I + II / T1 + T2 |
| EN Type | T1 + T2 |
| Type | DIN rail module, two-section, divisible |
| IEC power supply system | TN |
Class B for 1-PhaseSurge Protection Device Manufacturer & Supplier in India
SG Power offers high-performance Surge Protection Device (SPD) solutions designed to protect electrical systems from lightning currents and transient overvoltages. The Class B for 1-Phase is a DIN rail module rated for 24V AC/DC on TN supply systems, built for industrial, commercial and telecom installations.
The wider range spans Class B, Class C and Class D devices, covering the service entrance, sub-distribution and terminal equipment so a coordinated protection cascade can be built from a single supplier.
Why the Class B for 1-Phase Module?
Combined lightning current and surge arrester (T1 + T2) for the service entrance. As a trusted surge protection device manufacturer in India, SG Power delivers dependable overvoltage protection solutions backed by full technical documentation.
- Combined Type 1 + Type 2 (I + II / T1 + T2) protection in a single device
- Two-section, divisible DIN rail module for fast mounting and servicing
- Rated 24 V AC/DC for TN power supply systems at 50/60 Hz
- Rugged PA 6.6 / PBT housing in jet black (RAL 9005), UL 94 V-0
- IP20 degree of protection when all terminal points are used
- Tested to IEC 61643-11 and EN 61643-11 with UL, cUL, CB and KEMA-KEUR approvals
Applications of the Class B for 1-Phase Surge Protection Device
Main Distribution Boards & Service Entrance
Industrial Control Panels
Commercial & Infrastructure Buildings
Solar & Renewable Energy Plants
Data Centers & IT Infrastructure
Telecom & Signalling Equipment
Why Choose SG Power Surge Protection Devices?
I + II / T1 + T2 device tested to IEC 61643-11 and EN 61643-11
Rated 24V AC/DC on TN power supply systems
DIN rail module, two-section, divisible
PA 6.6 / PBT housing in Jet black (RAL 9005), rated UL 94 V-0
UL/cUL, IECEE CB Scheme & KEMA-KEUR approvals
Competitive pricing and expert support
Frequently Asked Questions — Class B for 1-Phase
What is the Class B for 1-Phase surge protection device?
It is a combined lightning current and surge arrester of IEC test classification I + II / T1 + T2 (EN type T1 + T2), supplied as a two-section, divisible DIN rail module for TN power supply systems with a nominal voltage UN of 24 V AC/DC at 50/60 Hz.
What are its dimensions and mounting details?
The module measures 71.2 mm (width) × 95 mm (height) × 71.2 mm (depth, including the 7.5 mm DIN rail) and occupies a horizontal pitch of 4 Div. It mounts directly on a DIN rail.
Does it have a fault indicator?
No — the surge protection fault message for this model is specified as None. Module condition should be verified during scheduled electrical inspection.
What operating conditions does it withstand?
Ambient temperature is -40 °C to 80 °C for both operation and storage/transport, with permissible operating humidity of 5 % to 95 %. It withstands shock of 25g (half-sine / 11 ms / 3x ±X, ±Y, ±Z) and vibration of 5g (10 ... 500 Hz / 2.5 h / X, Y, Z). Degree of protection is IP20, achieved only when all terminal points are used.
Which standards and approvals does it carry?
It is tested to IEC 61643-11 and EN 61643-11 and carries KEMA-KEUR (71-148002), UL Recognized and cUL Recognized (FILE E 330181) and IECEE CB Scheme (AT 2905/M1) approvals.
