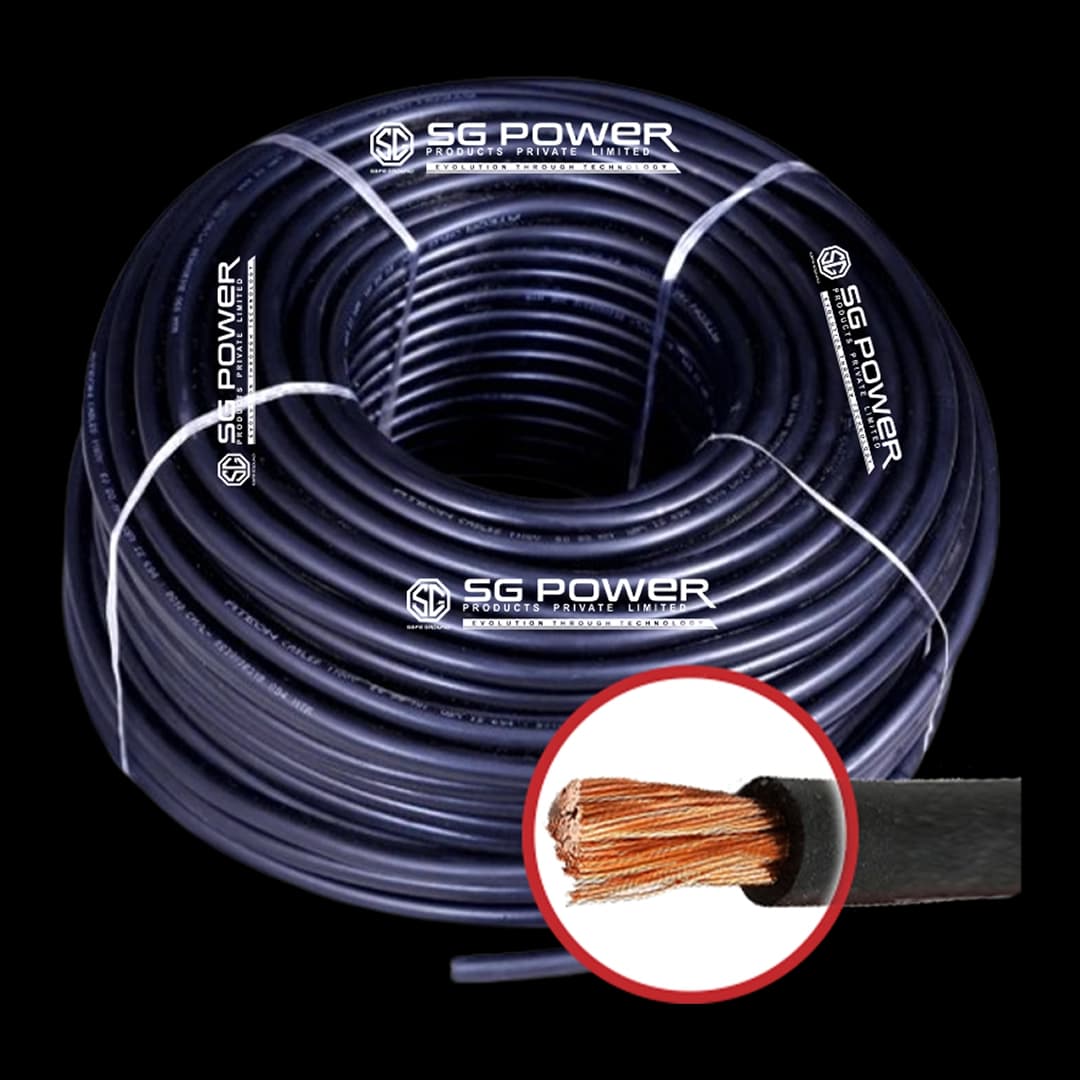

PVC Insulated Conductor
6 sqmm▼
Description
PVC Insulated Copper Conductor of size 6 sqmm is manufactured using high-quality 99% pure copper and insulated with PVC Type 'D' as per IS standards.
It features an insulation thickness of 0.8 mm (Average) and an overall cable diameter of 5.3 mm (Average). The conductor offers a maximum resistance of 3.3 (Average) Ohm/Km at 20°C, ensuring efficient electrical performance.
Designed for a voltage rating of 1100 Volts, this single-core, multi-stranded cable is ideal for electrical wiring, earthing, and industrial applications. It is ISI marked and manufactured in compliance with IS-694:2010.
Technical Data
| Manufacturer | Any Reputed Make |
| Product | Single Core Multi Stranded PVC Insulater Copper Cable |
| Size | 6 sqmm |
| Core Material | 99% Pure Copper |
| Make | Standard |
| ISI Marked | Yes |
| Voltage | 1100 Volts |
| Insulation Thickness | 0.8 mm (Average) |
| Overall Dia of Cable | 5.3 mm (Average) |
| Insulation Color | Green & Black |
| Maximum resistance of conductor at 20°C (Ohm/Km) | 3.3 (Average) |
| Standard Length of Coil | 90 / 100 metre |
| Type of PVC Insulation | PVC Type 'D' as per IS:5831-1984 |
| Cable Identification | Printed as per manufacturer's standard practice |
| Applicable Standard | IS-694:2010 |
